Acoustic Floor Blocks

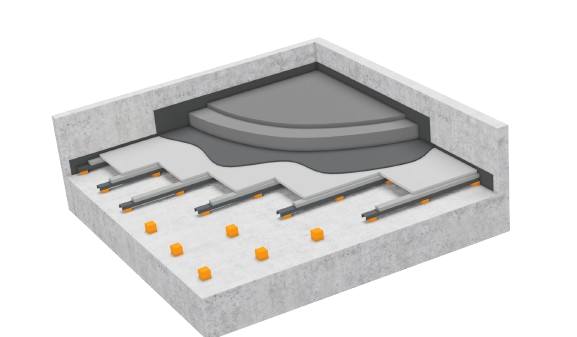

Acoustic Floor Blocks are ideal for high demands at low frequencies. These blocks are made from Sylomer® material and are elastomer point bearings that are used under dry and wet screeds. Due to their dynamic properties, these products are particularly suitable for creating floors with low natural frequencies, which have been indispensable in recording studios, cinemas or in stage construction worldwide for years.

Our Acoustic Floor Blocks are impressive:

Excellent impact sound insulation for particularly high acoustic requirements
Outstanding resistance to shock and impact
Minimal settlement behavior
Exceptional long-term ageing resistance
Proven high product quality
Additional installation layer

The right Acoustic Floor Blocks for every application

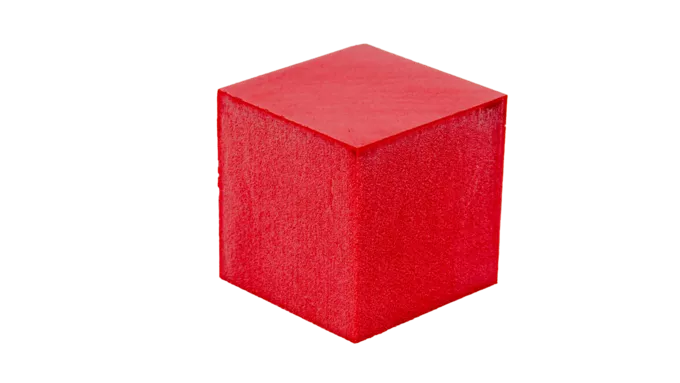

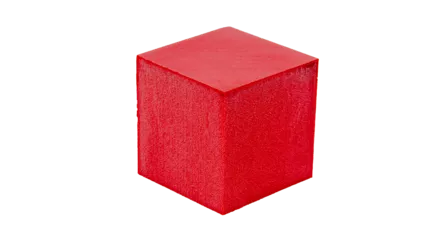

AFB 30

Load range: 30 kg/m²
Impact sound reduction with dry screed ∆Lw: 31 dB
Impact sound reduction with wet screed ∆Lw: 38 dB
Natural frequency f₀: ≥ 6 Hz
Thickness: 50 mm
Fire behaviour: Class E

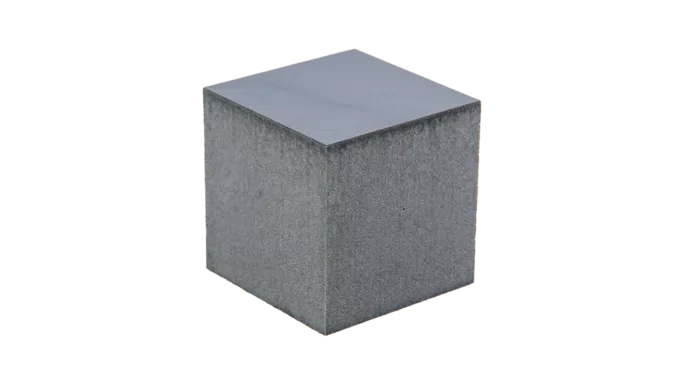

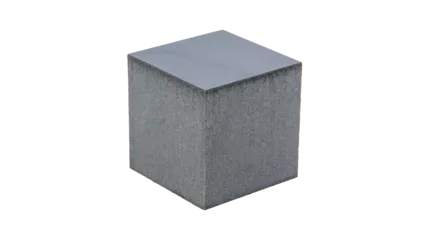

AFB 60

Load range: 60 kg/m²
Impact sound reduction with dry screed ∆Lw: 31 dB
Impact sound reduction with wet screed ∆Lw: 38 dB
Natural frequency f₀: ≥ 6 Hz
Thickness: 50 mm
Fire behaviour: Class E

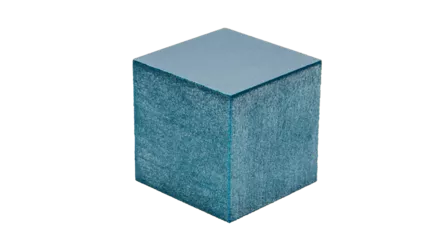

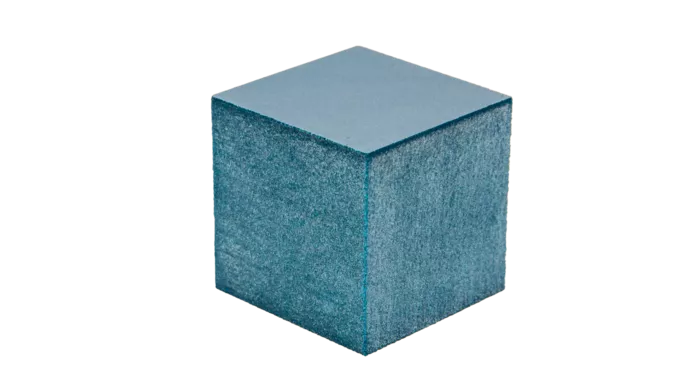

AFB 110

Load range: 110 kg/m²
Impact sound reduction with dry screed ∆Lw: 31 dB
Impact sound reduction with wet screed ∆Lw: 38 dB
Natural frequency f₀: ≥ 6 Hz
Thickness: 50 mm
Fire behaviour: Class E

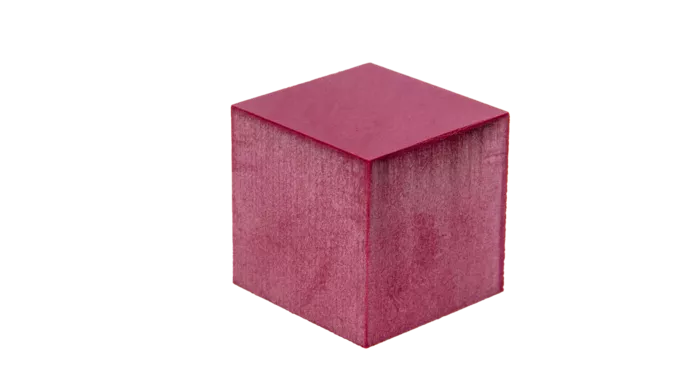

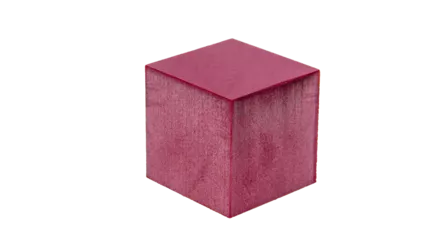

AFB 160

Load range: 160 kg/m²
Impact sound reduction with dry screed ∆Lw: 31 dB
Impact sound reduction with wet screed ∆Lw: 38 dB
Natural frequency f₀: ≥ 6 Hz
Thickness: 50 mm
Fire behaviour: Class E

FloorCalc

Find the right solution for every application

FloorCalc® is the perfect calculation programme for customised impact sound insulation. Whether Acoustic Floor Mats (AFM) or Acoustic Floor Blocks (AFB) are selected. This programme is ideally suited for individual floor structures and delivers precise results, taking into account up to 25 configurable input parameters.
