High load elastomeric bearings
Our Sylodyn® HRB HS bearing solutions have been specially developed for use in building construction. They offer reliable and efficient protection against vibrations and shocks within the building caused by external influences such as rail or road traffic. At the same time, they enable the targeted transfer of concentrated loads within the load-bearing structure - for example under columns, walls or pile foundations. Depending on the requirements, point, strip or customised variants are available.
Our high-load elastomeric bearings are impressive:
- High load transfer up to 12 N/mm²
- Tuning frequency between 8 Hz and 12 Hz for optimum vibration protection
- Bearing height: 50-100 mm
- Can be used in points, strips or for pile head applications
- Economical thanks to targeted bearing
- Material: Sylodyn® HRB HS
The right Sylodyn® HRB HS bearing for every situation

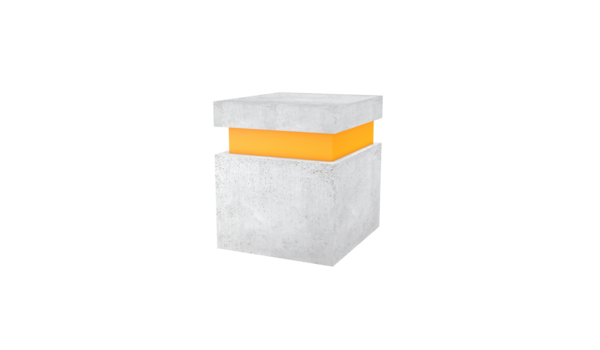

Point bearings for supports
- For transferring concentrated individual loads
- Compact design with high load-bearing capacity
- Local vibration isolation directly under load-bearing elements
Strip bearing for load-bearing walls
- Uniform load distribution via linear supports
- Easy integration into masonry or concrete walls
- Suitable for horizontal force transfer
Special bearings for pile foundations
- Elastic decoupling of the pile heads
- Supplemented with filler material for complete load transfer
- Ideal for dynamically loaded or vibration-sensitive foundations
