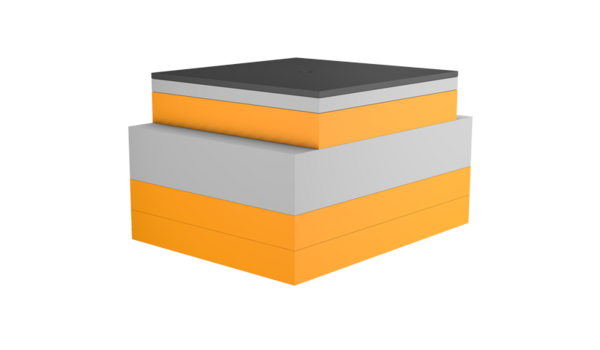

Isotop® SE-DE
Isotop® SE-DE and SE-DE-Elevator (specially developed for elevator construction) are elements that replicate a quasi-double elastic bearing by using an additional, heavy intermediate mass. The Getzner solution is deployed where it is not possible to incorporate a heavy intermediate mass (such as concrete). The multi-layer design allows structure-borne noise to be isolated in a targeted manner.
Isotop® SE-DE is used in discrete bearings for: elevator motors, AC and cooling units, and CHP plants.
Another area of application is source or recipient isolation in the case of machines and assemblies.
Main characteristic
- Sandwich element for double elastic bearing EL-3 in accordance with VDI 2566
- Up to three layers of insulation made from Sylomer®/Sylodyn®
- Getzner solution for elevator construction
- Double elastic bearing
- Point bearing
- Natural frequency of up to 7.5 Hz
- Standard: DIN EN ISO 1461, VDI-2566
Advantages
- Fast installation
- Uniform size
- Very precise natural frequency
- Absorption of high dynamic load peaks
- Cost-effective bearing
- Long service life
- High resistance to corrosion
- Reliable vibration isolation
- Diverse possible applications
- Higher vibration-damping efficiency than a single bearing
