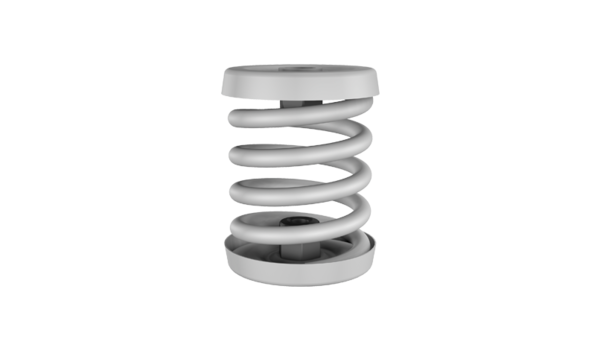

Isotop® SD

Isotop SD steel spring vibration isolators are primarily used for source isolation of ventilators, blowers, fans, air-handling units, compressors, emergency power generators or pumps.

They are also deployed for the recipient isolation of sensitive electronic assemblies, measuring equipment, scales or test rigs. The steel spring vibration isolators therefore ensure vibration insulation for all types of machines.

Main characteristic:

standard design steel spring isolator, electro-galvanised or cathodic dip painted
Vibration decoupling of technical equipment
Protection of sensitive items of equipment by means of recipient isolation
Natural frequency of approx. 3 Hz
Designed in accordance with DIN EN 10270-1: 2012 and DIN EN 13906-1: 2013

The advantages for you

Interchangeable: the overall height, diameter and connection thread are uniform for all types
Open design: the excitation source is only connected to the foundation by the spring
Spring element oscillates freely in the horizontal plane
Status can be checked without dismantling the equipment thanks to visible spring
Separation distance between the spring coils is visible under load
Accessories, footplate and height adjustment are universal and can be used for all types
