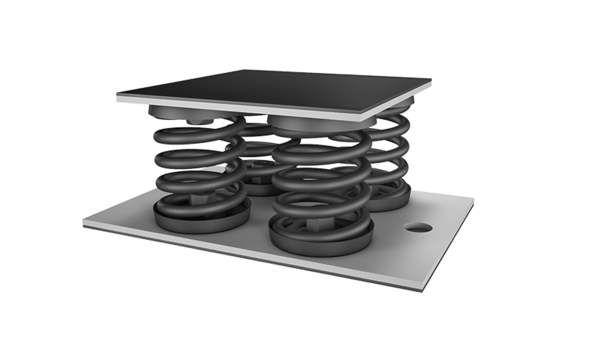

Isotop® SD/MSN-BL
Isotop® BL block elements are used for source isolation of machines – such as heavy-duty ventilators, blowers, fans, air-handling units, compressors, emergency power generators, pumps, textile machines, jacks, vibrating grates or vibrating feeders. What's more, they are also deployed for recipient isolation of sensitive measuring equipment, scales, test rigs, switch cabinets or transport bearings. The block elements are used to provide vibration isolation for all types of machines.
Main characteristic:
- Low block elements for smaller loads and restricted installation heights
- Source isolation
- Recipient isolation
- Vibration isolation
- Natural frequency of approx. 3 Hz
- Powder coating for pressure plates, CDP coating for springs
- Designed in accordance with DIN EN 10270-1: 2012 + DIN EN 13906-1: 2013
The advantages for you
- Flat block elements for smaller loads
- Restricted installation heights
- Interchangeable due to consistent overall heights throughout the product range
- Open design – the excitation source is only connected to the suspension point by the spring
- Spring element oscillates freely in the horizontal plane
- Spring is clearly visible – status can be checked without dismantling the equipment (including under load)
- Steel plates can be adapted to the existing connection surfaces
- Isotop BL/DSD elements with defined static and dynamic stiffness and damping
- High production accuracy – no deviation from dimensions or discrepancies in the case of technical values
