Isotop DSD-BL

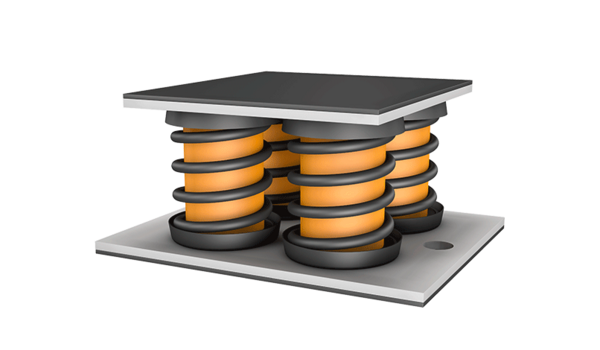

Isotop DSD-BL are block elements made from steel-spring vibration isolators with integrated Sylodamp® dampers. These are used for source isolation of heavy-duty ventilators, blowers, fans, air-handling units, compressors, emergency power generators, piston pumps, turbine bearings, textile machines, jacks, CHP plants, rotary machines, centrifuges, vibrating grates or vibrating feeders.

Main characteristic

Block element with Sylodamp® damping core for large loads
Source and recipient isolation
Vibration isolation for machines of all types
Natural frequency of approx. 4-6 Hz

The advantages for you

Interchangeable: the overall height, diameter and connection thread are the same for all types
Open design – the excitation source is only connected to the foundation by the spring
Spring element oscillates freely in the horizontal plane
Spring is clearly visible – status can be checked without dismantling the equipment
Visible separation distance between the spring coils under load
Accessories, footplate and height adjustment are universal and can be used for all types
Damping core is permanently elastic and break resistant
High corrosion resistance thanks to a cathodic dip-painted coating
Designed in accordance with DIN EN 10270-1: 2012 + DIN EN 13906-1: 2013
