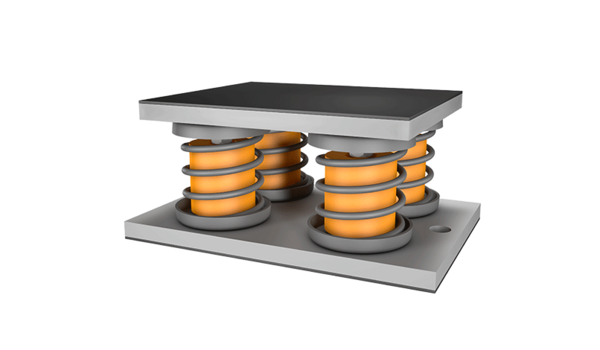

Isotop DMSN-BL

The DMSN-block element combines the properties of several Isotop DMSN-steel springs for applications with high loads yet low installation heights. Therefore, Isotop DMSN-BL is particularly suitable for heavier machines with multiple start-up and shut-down cycles, such as pumps or smaller block-type thermal power stations.

Main characteristics

  • Natural frequency from 7.5 Hz
  • Low overall height of 79 mm
  • High load capacity up to 1,390 kg per element
  • Sylodamp® inside ideal for machines with many start-up and shut-down cycles
  • Head and foot plate with 4 mm Sylomer® anti-slip coating
  • Springs cathodic dip coated (KTL) for increased corrosion protection
  • Secure connection between plate and spring thanks to special bonding
  • Head plate with M 10 thread
  • Simple load control thanks to open design

Advantages

  • Low tuning frequencies with low overall height
  • Open spring construction
  • Highest corrosion protection
  • Modular and compact product design
  • Easy connection thanks to M10 thread

Applications

Applications

Bearing of cogeneration plants (CHP)

Applications

Bearing of pumps

1 / 2

Product catalogue

The Right Machine Bearing - Wanted? Found!

1 document available
Product Catalogue Machine Bearings for Building Services Equipment (HVAC) EN
Product Catalogue Machine Bearings for Building Services Equipment (HVAC) EN
1.68 MB
