Building Shielding
The full-surface elastic bearing of a building on Sylomer® or Sylodyn® efficiently reduces the transmission of vibrations from the surroundings into the structure. With computerised modelling, Getzner can precisely determine the levels of vibrations that can be anticipated in the building. If the vibrations or noise levels are higher than the defined thresholds, vibration isolation of the structure can be an effective way of achieving the desired result.

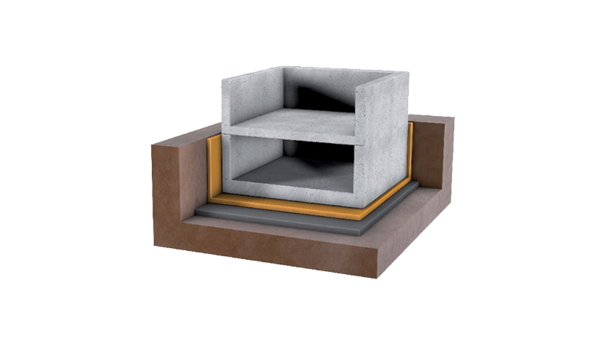

A full-surface elastic bearing of the foundation slab is the simplest form of resilient bedding of buildings. It is usually installed between the actual foundation slab of the building and an additional, unreinforced concrete base layer. In order to completely decouple the building, the outer cellar walls must also be elastically isolated.
The advantages for you
- Proven protection against building vibration
- Vibration isolation with customized bearings
- Reduction in sound radiation entering buildings from external sources of disturbance, such as railway traffic, industrial complexes or roads
- Higher quality living and working environments through elastic decoupling
- Increase in market value of land and buildings
- Greater potential for building usage
- Pioneering and lasting solution for maximum comfort
- Achieves lower natural frequencies
- Easy preparation
- Noise insulation can be implemented rapidly
Case studies
Case studies
Luxury apartment block The Touraine
Case studies
Central & Park Panorama Towers, Arnulfpark
Case studies
Drachen-Center
1
/ 4
Information brochures
2 documents available
Contacts
{"ch":[9],"li":[9],"za":[9],"si":[11],"tr":[11],"pl":[17],"cz":[17],"sk":[17],"ru":[24],"ua":[24],"by":[24],"ee":[24],"lv":[24],"lt":[24],"md":[24],"bg":[24,244],"ge":[24],"az":[24],"am":[24],"tm":[24],"uz":[24],"kg":[24],"tj":[24],"kz":[24],"jp":[33,125,257],"tl":[39],"pg":[39],"la":[39],"bt":[39],"np":[39],"il":[40],"fr":[42,228,229,267],"lu":[42],"br":[43],"de":[74,212,240],"nl":[74],"us":[96,259,260,285],"ca":[96,260],"it":[132],"cn":[148],"kr":[151],"tw":[151],"nz":[151],"id":[151],"ph":[151],"bn":[151],"bd":[151],"my":[151],"sg":[151],"vn":[151],"hk":[151],"th":[151],"kh":[151],"mm":[151],"qa":[159],"ae":[159],"sa":[159],"eg":[159],"om":[159],"kw":[159],"iq":[159],"ir":[159],"sy":[159],"lb":[159],"dz":[159],"ma":[159],"tn":[159],"ly":[159],"jo":[159],"ve":[171],"co":[171],"ec":[171],"pe":[171],"cl":[171],"ar":[171],"bo":[171],"py":[171],"uy":[171],"gb":[195],"ie":[195],"hr":[244],"ba":[244],"hu":[244],"rs":[244],"me":[244],"al":[244],"mk":[244],"gr":[244],"ro":[244],"at":[245],"dk":[256],"no":[256],"fi":[256],"se":[266],"in":[276]}
Downloads
2 documents available • Download all
Brochure Increasing Value through Elastic Shielding of Building EN
1.98 MB
Case Study Four Suns Luxury Residential Complex, Moscow EN
652.29 KB
